NINGBO DEREK TOOLS CO.,LTD.

型号		刃数						刀片	刀片螺钉	旗形扳手	重量

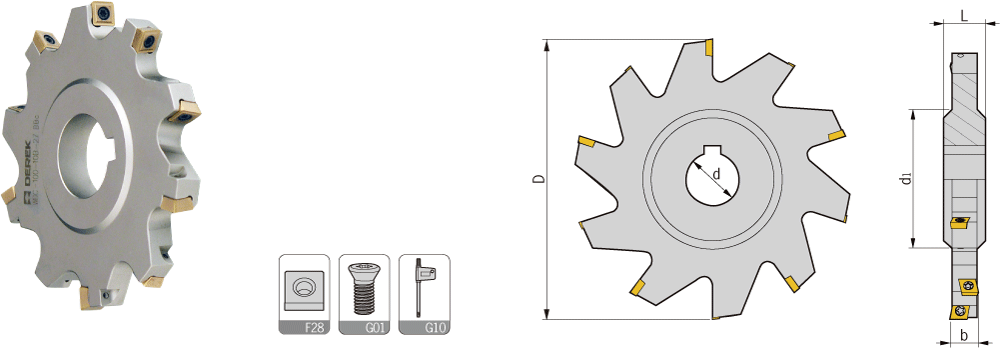

Specifcation		Teeth	D	d	d1	b	L	Insert	Insert screw	Wrench	Weight
WDC-	080-06B-22	8	80	22	44	6	12	SPMT050204	M020D040	Q06R	0.29
	080-07B-22	8	80	22	44	7	12	SPMT050204	M020D040	Q06R	0.30
	080-08B-22	8	80	22	44	8	12	SPMT060204	M022D050	Q06R	0.32
	080-09B-22	8	80	22	44	9	12	SPMT060204	M022D050	Q06R	0.35
	080-10B-22	8	80	22	44	10	12	SPMT060204	M022D050	Q06R	0.38
	080-11B-22	8	80	22	44	12	12	SPMT07T308	M025D060	Q06R	0.39
	080-12B-22	8	80	22	44	16	12	SPMT07T308	M025D060	Q06R	0.42
	100-06B-27	10	100	27	50	6	12	SPMT050204	M020D040	Q06R	0.50
	100-07B-27	10	100	27	50	7	12	SPMT050204	M020D040	Q06R	0.52
	100-08B-27	10	100	27	50	8	12	SPMT060204	M022D050	Q06R	0.54
	100-09B-27	10	100	27	50	9	12	SPMT060204	M022D050	Q06R	0.60
	100-10B-27	10	100	27	50	10	12	SPMT060204	M022D050	Q06R	0.65
	100-11B-27	10	100	27	50	11	12	SPMT07T308	M025D060	Q08B	0.70
	100-12B-27	10	100	27	50	12	12	SPMT07T308	M025D060	Q08B	0.75
	100-14B-27	10	100	27	50	14	16	SPMT090408	M035D090	Q15B	0.85
	100-16B-27	10	100	27	50	16	16	SPMT090408	M035D090	Q15B	0.88
	125-06B-32	12	125	32	65	6	12	SPMT050204	M020D040	Q06R	0.70
	125-07B-32	12	125	32	65	7	12	SPMT050204	M020D040	Q06R	0.75
	125-08B-32	12	125	32	65	8	12	SPMT060204	M022D050	Q06R	0.80
	125-10B-32	12	125	32	65	10	12	SPMT060204	M022D050	Q06R	0.88
	125-11B-32	12	125	32	65	11	12	SPMT07T308	M025D060	Q08B	0.93
	125-12B-32	12	125	32	65	12	12	SPMT07T308	M025D060	Q08B	0.98
	125-14B-32	12	125	32	65	14	16	SPMT090408	M035D090	Q15B	1.00
	125-16B-32	12	125	32	65	16	16	SPMT090408	M035D090	Q15B	1.18
	125-18B-32	10	125	32	65	18	20	SPMT110408	M040D090	Q15B	1.30
	125-20B-32	10	125	32	65	20	20	SPMT110408	M040D090	Q15B	1.45
	125-25B-32	10	125	32	65	25	25	SPMT140512	M050D110	Q20B	1.70
	160-11B-40	16	160	40	75	11	12	SPMT07T308	M025D060	Q08B	1.65
	160-12B-40	16	160	40	75	12	12	SPMT07T308	M025D060	Q08B	1.70
	160-14B-40	16	160	40	75	14	16	SPMT090408	M035D090	Q15B	1.85
	160-16B-40	16	160	40	75	16	16	SPMT090408	M035D090	Q15B	2.10
	160-18B-40	12	160	40	75	18	20	SPMT110408	M040D090	Q15B	2.50
	160-20B-40	12	160	40	75	20	20	SPMT110408	M040D090	Q15B	2.80
	160-25B-40	12	160	40	75	25	25	SPMT140512	M050D110	Q20B	3.00
	200-14B-40	18	200	40	80	14	16	SPMT090408	M035D090	Q15B	3.00
	200-16B-40	18	200	40	80	16	16	SPMT090408	M035D090	Q15B	3.20
	200-18B-40	14	200	40	80	18	20	SPMT110408	M040D090	Q15B	3.60
	200-20B-40	14	200	40	80	20	20	SPMT110408	M040D090	Q15B	4.10
	200-25B-40	14	200	40	80	25	25	SPMT140512	M050D110	Q20B	4.60

适用 Suitable:德克刀片 DEREK Insert
