NINGBO DEREK TOOLS CO.,LTD.

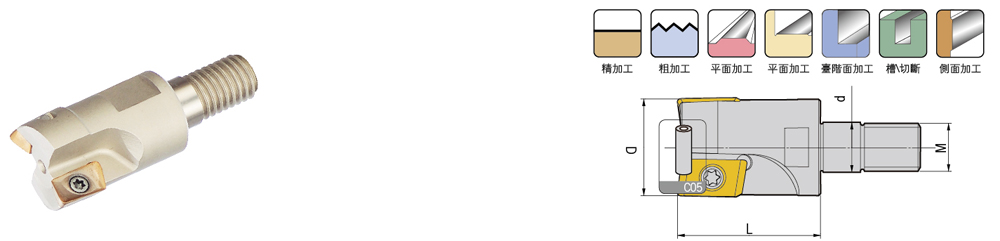

型號		刃數	圖示							刀片型號	刀片螺釘	旗形扳手	重量
Specifcation		Teeth	Figure	D	d	a	L1	L2	L	Insert	Insert screw	Wrench	Weight
300R-	C10-10-100-1T	1	B	10	10	9	25	-	100	APMT1135	M025W060	Q08B	0.05
	C10-10-130-1T	1	B	10	10	9	25	-	130	APMT1135	M025W060	Q08B	0.06
	C12-12-130-1T	1	B	12	12	9	30	-	130	APMT1135	M025W060	Q08B	0.10
	C16-16-120-2T	2	B	16	16	9	40	-	120	APMT1135	M025W060	Q08B	0.17
	C16-16-160-2T	2	B	16	16	9	50	-	160	APMT1135	M025W060	Q08B	0.23
	C16-16-180-2T	2	B	16	16	9	60	90	180	APMT1135	M025W060	Q08B	0.26
	C16-16-200-2T	2	B	16	16	9	60	100	200	APMT1135	M025W060	Q08B	0.29
	C20-20-120-2T	2	A	20	20	9	50	-	120	APMT1135	M025W060	Q08B	0.26
	C20-20-160-2T	2	B	20	20	9	60	-	160	APMT1135	M025W060	Q08B	0.36
	C20-20-200-2T	2	B	20	20	9	70	100	200	APMT1135	M025W060	Q08B	0.46
400R-	C25-25-160-2T	2	A	25	25	14	70	-	160	APMT1604	M040S100-1	Q15B	0.55
	C25-25-200-2T	2	B	25	25	14	70	100	200	APMT1604	M040S100-1	Q15B	0.70
	C25-25-250-2T	2	B	25	25	14	80	115	250	APMT1604	M040S100-1	Q15B	0.89
	C25-25-300-2T	2	B	25	25	14	80	165	300	APMT1604	M040S100-1	Q15B	1.07
	C25-30-160-2T	2	A	30	25	14	48	-	160	APMT1604	M040S100-1	Q15B	0.81
	C25-30-200-2T	2	B	30	25	14	48	100	200	APMT1604	M040S100-1	Q15B	1.11
	C25-30-250-2T	2	B	30	25	14	48	115	250	APMT1604	M040S100-1	Q15B	1.42
	C32-32-160-2T	2	A	32	32	14	48	-	160	APMT1604	M040S100-1	Q15B	0.86
	C32-32-200-2T	2	B	32	32	14	48	100	200	APMT1604	M040S100-1	Q15B	1.16
	C32-32-250-2T	2	B	32	32	14	48	115	250	APMT1604	M040S100-1	Q15B	1.47
	C32-32-300-2T	2	B	32	32	14	48	165	300	APMT1604	M040S100-1	Q15B	1.77
	C32-35-160-2T	2	A	35	32	14	48	-	160	APMT1604	M040S100-1	Q15B	0.95
	C32-35-200-2T	2	A	35	32	14	48	-	200	APMT1604	M040S100-1	Q15B	1.20
	C32-35-250-2T	2	A	35	32	14	60	-	250	APMT1604	M040S100-1	Q15B	1.51
	C32-35-300-2T	2	A	35	32	14	60	-	300	APMT1604	M040S100-1	Q15B	1.83
	C32-35-160-3T	3	A	35	32	14	60	-	160	APMT1604	M040S100-1	Q15B	0.94
	C32-35-200-3T	3	A	35	32	14	60	-	200	APMT1604	M040S100-1	Q15B	1.20
	C32-35-250-3T	3	A	35	32	14	60	-	250	APMT1604	M040S100-1	Q15B	0.51
	C32-35-300-3T	3	A	35	32	14	60	-	300	APMT1604	M040S100-1	Q15B	1.82
	C32-35-350-3T	3	A	35	32	14	60	-	350	APMT1604	M040S100-1	Q15B	2.13
	C32-35-400-3T	3	A	35	32	14	60	-	400	APMT1604	M040S100-1	Q15B	2.46
	C32-35-450-3T	3	A	35	32	14	60	-	450	APMT1604	M040S100-1	Q15B	2.78
	C32-35-500-3T	3	A	35	32	14	60	-	500	APMT1604	M040S100-1	Q15B	3.07
	C32-40-160-3T	3	A	40	32	14	60	-	160	APMT1604	M040S100-1	Q15B	1.10
	C32-40-200-3T	3	A	40	32	14	60	-	200	APMT1604	M040S100-1	Q15B	1.24
	C32-40-250-3T	3	A	40	32	14	60	-	250	APMT1604	M040S100-1	Q15B	1.55
	C32-40-300-3T	3	A	40	32	14	60	-	300	APMT1604	M040S100-1	Q15B	1.88

適用Suitable:德克、三菱刀片DEREK Or MITSUBISHI Insert

特點/ Feature
■本刀適合於强力切削。	■For heavy-duty cutting.
■回轉及進刀量多於一般銑刀3倍。	■Two more times of R.P.M and cutting than general cutters.

特殊型號Special size

型號		刃數	圖示						刀片型號	刀片螺釘	旗形扳手	重量
Specifcation		Teeth	Figure	D	d	a	L1	L	Insert	Insert screw	Wrench	Weight
300R-	C12-13-130-1T	1	A	13	12	9	25	130	APMT1135	M025W060	Q08B	0.11
	C15-16-120-2T	2	A	16	15	9	40	120	APMT1135	M025W060	Q08B	0.15
	C15-16-160-2T	2	A	16	15	9	40	160	APMT1135	M025W060	Q08B	0.21
	C15-16-180-2T	2	A	16	15	9	40	180	APMT1135	M025W060	Q08B	0.24
	C15-16-200-2T	2	A	16	15	9	40	200	APMT1135	M025W060	Q08B	0.26
	C15.6-16-160-2T	2	A	16	15.6	9	50	160	APMT1135	M025W060	Q08B	0.22
	C15.6-16-200-2T	2	A	16	15.6	9	50	200	APMT1135	M025W060	Q08B	0.28
	C16-17-120-2T	2	A	17	16	9	50	120	APMT1135	M025W060	Q08B	0.17
	C16-17-160-2T	2	A	17	16	9	50	160	APMT1135	M025W060	Q08B	0.24
	C16-17-180-2T	2	A	17	16	9	50	180	APMT1135	M025W060	Q08B	0.27
	C16-17-200-2T	2	A	17	16	9	50	200	APMT1135	M025W060	Q08B	0.30
	C19-20-160-2T	2	A	20	19	9	50	160	APMT1135	M025W060	Q08B	0.33
	C19-20-200-2T	2	A	20	19	9	50	200	APMT1135	M025W060	Q08B	0.42
	C20-21-160-2T	2	A	21	20	9	50	160	APMT1135	M025W060	Q08B	0.39
	C20-21-200-2T	2	A	21	20	9	50	200	APMT1135	M025W060	Q08B	0.47
400R-	C24-25-160-2T	2	A	25	24	14	50	160	APMT1604	M040S080-1	Q15B	0.51
	C24-25-200-2T	2	A	25	24	14	50	200	APMT1604	M040S080-1	Q15B	0.65
	C24-25-250-2T	2	A	25	24	14	50	250	APMT1604	M040S080-1	Q15B	0.83
	C25-26-160-2T	2	A	26	25	14	50	160	APMT1604	M040S080-1	Q15B	0.56
	C25-26-200-2T	2	A	26	25	14	50	200	APMT1604	M040S080-1	Q15B	0.71
	C25-26-250-2T	2	A	26	25	14	50	250	APMT1604	M040S080-1	Q15B	0.90

適用Suitable:德克、三菱刀片DEREK Or MITSUBISHI Insert

工件材料	硬度	切削速度	每齒進給量FZ（mm/齒）
Work Piece	Hardness	Cutting speed	Feed
軟鋼 Mild steel	＜180HB	120-200	0.05-0.2
碳素鋼 Carbon steel	180-280HB	100-200	0.05-0.25
合金鋼 Alloy steel	280-350HB0	80-160	0.05-0.25
高硬度鋼 Hardened steel	＞40HRC	50-100	0.05-0.15
不銹鋼 Stainless steel	＜200HB以下	80-160	0.05-0.25
普通鑄鐵 FC250	伸張强度Flex strength＜350N/mm²	100-160	0.1-0.25
＜FCD450 鑄鐵	伸張强度Flex strength＜450N/mm²	80-140	0.1-0.25
＜FCD500 Cast iron	伸張强度Flex strength500-800N/mm²	60-120	0.05-0.25
