HSK Chuck You Are Here : HSK Chuck

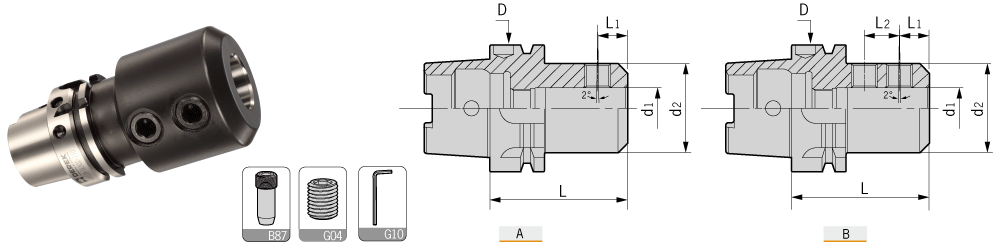

HSK-A-SLNB Side-lock Holder
型号 图示                                                                    侧面压紧螺钉 重量

 Specifcation

 Figure D d1 d2

L1

L2

L3

 L4 L

Side-lock screw

Weight

HSK63A-























HSK100A-

 SLNB6-80 A 63 6 25 80 54 18 - 112 M060U080 0.90
SLNB8-80 A 63 8 28 80 54 18 - 112 M080U080 1.00
SLNB10-80 A 63 10 35 80 54 20 - 112 M100U120 1.00
SLNB12-90 A 63 12 42 90 64 22.5 - 122 M120U140 1.70
SLNB16-100 A 63 16 48 100 74 24 - 132 M140U160 1.70
SLNB20-100 A 63 20 52 100 74 25 - 132 M160U250 1.80
SLNB25-110 B 63 25 65 110 84 24 22 142 M180Z160P 2.50
SLNB32-110 B 63 32 72 110 84 24 24 142 M200Z200P 2.70
SLNB6-90 A 100 6 25 90 61 18 - 140 M060U080 3.00
SLNB8-90 A 100 8 28 90 61 18 - 140 M080U080 3.20
SLNB10-90 A 100 10 35 90 61 20 - 150 M100U120 3.40
SLNB12-100 A 100 12 42 100 71 22.5 - 150 M120U140 3.40
SLNB16-100 A 100 16 48 100 71 24 - 150 M140U160 3.80
SLNB20-110 A 100 20 52 110 81 25 - 160 M160U250 3.90
SLNB25-120 B 100 25 65 120 91 24 22 170 M180Z160P 4.00
SLNB32-120 B 100 32 72 120 91 24 24 170 M200Z200P 4.10
注：报价时含扳手，筒夹需单独订购。
Notice:Wrenchs shall be ordered separately.
