HSK Chuck You Are Here : HSK Chuck

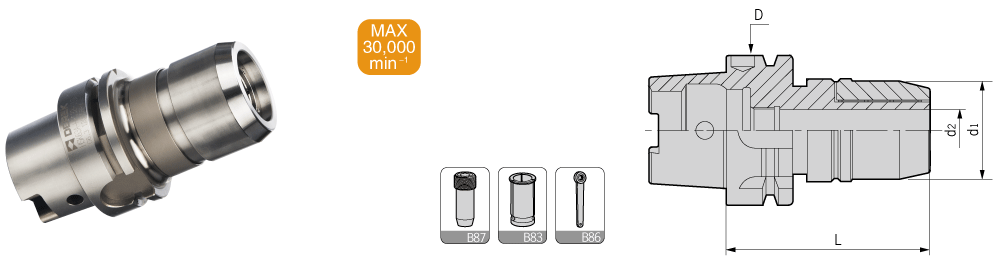

HSK-A-HPM High-Speed Power Chuck
型号 夹持范围
               适用筒夹  重量

 Specifcation

 Clamping range D d1 d2

L1

 L

Suit collet

Weight

HSK50A-

HSK63A-











HSK100A-

 HPM16-80 3-16 50 46 16 54 80 SC16 1.00
HPM16-80 3-16 63 46 16 54 80 SC16 1.30
HPM16-100 3-16 63 46 16 74 100 SC16 1.50
HPM20-110 6-20 63 55 20 59 110 SC20 1.70
HPM32-110 6-32 63 68 32 89 110 SC32 2.50
HPM16-115 3-16 100 46 16 86 115 SC16 3.60
HPM20-105 6-20 100 55 20 86 105 SC20 4.20
HPM32-135 6-32 100 68 32 86 135 SC32 4.50
HPM32-135 6-32 100 68 32 86 135 SC32 5.00
注：扳手和筒夹需单独订购。
Notice:Wrench and collets shall be ordered separately.

特点/ Feature
■动平衡设定: G2.5；20,000 rpm。 ■Balanced: G2.5; 20,000 rpm;
■3D处径向跳动≤0.01mm。
 ■Runout (X3D): ≤ 0.01mm.
