HSK Chuck You Are Here : HSK Chuck

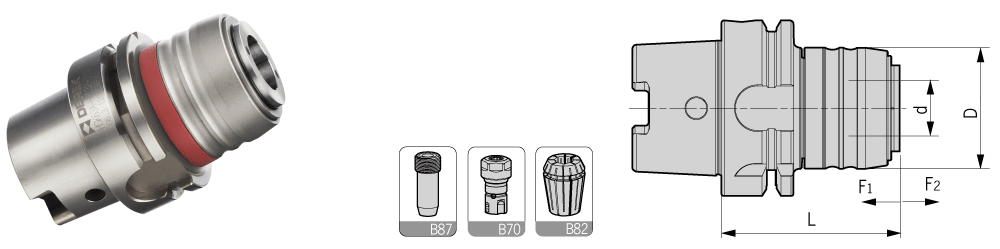

HSK-A-VER Split Synch Tapping Chuck
型号                             攻牙能力 适用延长杆 重量

Specifcation

 D d L F1

F2

Tapping capacity

Suit extender

Weight

HSK40A-

 VER16-69 43.5 20 69 0.2 1 M3-M12

VER16-M24

 0.54
VER20-80 52 25 80 0.2 1 M5-M16

VER20-M26

 0.59
VER25-90 60 32 90 0.2 1 M6-M20 VER25-M28 0.65

HSK50A-

 VER16-70 43.5 20 70 0.2 1 M3-M12

VER16-M24

 0.66
VER20-87 52 25 87 0.2 1 M5-M16

VER20-M26

 0.80

VER25-97

 60 32 97 0.2 1 M6-M20 VER25-M28 0.96

HSK63A-

 VER16-64 43.5 20 64 0.2 1 M3-M12

VER16-M24

 0.88
VER20-87 52 25 87 0.2 1 M5-M16

VER20-M26

 1.06
VER25-97 60 32 97 0.2 1 M6-M20

VER25-M28

 1.21
VER32-113 72 40 113 0.2 1 M10-M24

VER32-M30

 1.61

VER40-122

 87 50 122 0.2 1 M14-M33 VER40-M32 1.85

HSK100A-

 VER16-70 43.5 20 70 0.2 1 M3-M12

VER16-M24

 3.21
VER20-82 52 25 82 0.2 1 M5-M16

VER20-M26

 3.58
VER25-91 60 32 91 0.2 1 M6-M20

VER25-M28

 3.95
VER32-110 72 40 110 0.2 1 M10-M24

VER32-M30

 4.25
VER40-115 87 50 115 0.2 1 M14-M33

VER40-M32

 4.45
注：延长杆、筒夹和扳手需单独订购。
Notice: Extender, collets and wrenchs shall be ordered separately.



特点/ Feature
■显著提高丝锥使用寿命80%以上。 ■Tap tool life increased by 80% and above;
■有效提高加工生产效率2-4倍。 ■Work efficiency increased 2 to 4 times;
■明显提高表面加工质量与精度。 ■Better workpiece surface quality;
■无需依赖设备精度。 ■With ER tapping collet;
■挤压丝锥首选。 ■Best choice for squeeze taps.





Previous Products

 HSK-A-ER Spring Collet Chuck 		Next Products

 HSK-A-TPG Split Rigid Tapping Chuck
