HSK-A-GSK High Precision Collet Chuck

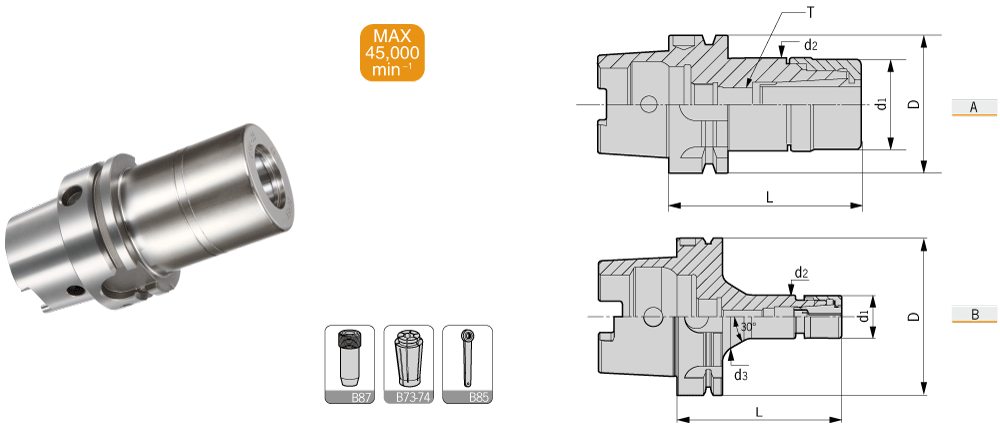

型号 图示                                                                                                    适用筒夹 重量

 Specifcation

  Figure D d1 d2

d3

a

L

T

Suit collet

Weight

HSK40A- GSK6-60 A 40 19.5 20 - - 60 - DSK6 0.47
GSK10-75 A 40 27 27.5 - - 75 - DSK10 0.50
HSK50A- GSK6-60 A 50 19.5 20 - - 60 - DSK6 0.60
GSK6-80P A 50 19.5 20   - 80 M060F200 DSK6 0.80
GSK10-75 A 50 27 27.5 - - 75 -   1.00
GSK10-100P A 50 27 27.5 - - 100 M100F200 DSK10 1.20
GSK16-80 A 50 40 40.5 - - 80 - DSK16 1.75
GSK16-100P A 50 40 40.5 - - 100 M16F200 DSK16 2.00
GSK20-100 A 50 48 48.5 - - 100 - DSK20 2.10
HSK63A- GSK6-80P A 63 19.5 20 - - 80 M060F200 DSK6 0.85
GSK6-100P A 63 19.5 20 - - 100 M060F200 DSK6 0.95
GSK10-75 A 63 27 27.5 - - 75 - DSK10 1.00
GSK10-100P
 A 63 27 27.5 - - 100 M100F200 DSK10 1.40
GSK16-80 A 63 40 40.5 - - 80 - DSK16 2.00
GSK16-100P A 63 40 40.5 - - 100 M060F200 DSK16 2.30
GSK16-120P A 63 40 40.5 - - 120 M060F200 DSK16 2.50
GSK20-100 A 63 48 48.5 - - 100 - DSK20 2.45
GSK20-120P A 63 48 48.5 - - 120 M160F200 DSK20 2.65
GSK25-100 A 63 55 55 - - 100 - DSK25 2.30
GSK25-120P A 63 55 55 - - 120 M200F200-P2 DSK25 2.70
HSK100A- GSK10-105P B 100 27 27.5 40.3 30º 105 M100F200 DSK10 2.60
GSK10-135P B 100 27 27.5 40.3 30º 135 M100F200 DSK10 2.80
GSK16-105P A 100 40 40.5 - - 105 M160F200 DSK16 2.80
GSK16-135P A 100 40 40.5 - - 135 M160F200 DSK16 3.10
GSK20-120P A 100 48 48.5 - - 120 M160F200 DSK20 3.00
GSK20-150P A 100 48 48.5 - - 150 M160F200 DSK20 3.30
GSK25-120P A 100 55 55 - - 120 M200F200-P2 DSK25 3.20
GSK25-150P A 100 55 55 - - 150 M200F200-P2 DSK25 3.50
注：“T”轴向限位螺钉、筒夹与扳手需单独另购。
Notice: “T” Axial fix screw、collets and wrenchs shall be ordered separately.



特点/ Feature
■动平衡设定: G2.5；25,000 rpm。 ■Balanced: G2.5; 25,000 rpm;
■3D处径向跳动≤0.005 mm。 ■Runout (X3D):  ≤0.005 mm.
