HSK Chuck

You Are Here : HSK Chuck

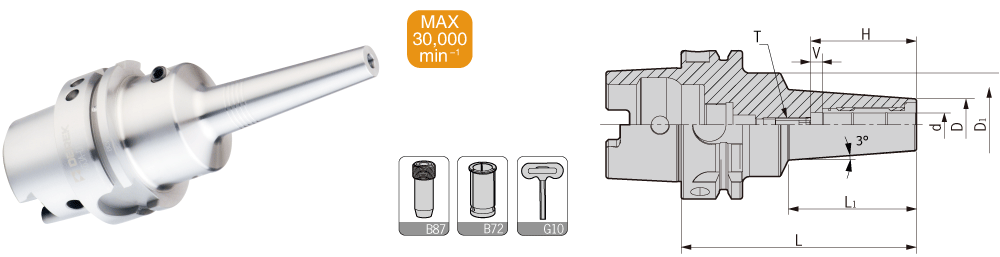

HSK-A-DHP Super Slim Hydraulic Chuck

型号										压紧螺钉	适用筒夹	扳手	重量
Specifcation		d	D	D1	H	V	L1	L	T	Insert Screw	Suit collet	Wrench	Weight
HSK63A-	DHP4S-100	4	11	46	24	-	42	100	-	M080U120-D	-	T04-L	0.70
	DHP4S-130	4	11	46	24	-	72	130	-	M080U120-D	-	T04-L	1.00
	DHP6S-130	6	13	46	40	10	74	130	M050Z150-D	M080U120-D	-	T04-L	1.20
	DHP6S-160	6	13	46	40	10	104	160	M050Z150-D	M080U120-D	-	T04-L	1.30
	DHP8S-130	8	15	46	40	10	74	130	M060Z150-D	M080U140-D	-	T04-L	1.20
	DHP8S-160	8	15	46	40	10	104	160	M060Z150-D	M080U140-D	-	T04-L	1.30
	DHP10S-130	10	17	46	41	10	74	130	M080Z150P-D	M080U140-D	-	T04-L	1.20
	DHP10S-160	10	17	46	41	10	104	160	M080Z150P-D	M080U140-D	-	T04-L	1.30
	DHP12S-130	12	19	46	46	10	75	130	M080Z150P-D	M080U120-D	D12/OD12	T04-L	1.20
	DHP12S-160	12	19	46	46	10	105	160	M080Z150P-D	M080U120-D	D12/OD12	T04-L	1.30

注：报价时含扳手，筒夹需单独订购。
Notice:Wrench is included,while collet is to be ordered separately.

特点/ Feature
■DHP刀具系列用途高转速、高精密切削加工，切削效果佳。	■For high-speed and high precision cutting;
■动平衡设定: G2.5; 25,000 rpm。	■Balanced: G2.5; 25,000 rpm;
■3D处径向跳动≤0.003 mm。	■Runout (X3D): ≤0.003 mm;
■外观细长设计，加工不易干涉。	■No interference due to slim design.

Previous Products

HSK-A-DHP Hydraulic Chuck

Next Products

HSK-A-SF Shrink Fit Holder
