HSK Chuck You Are Here : HSK Chuck

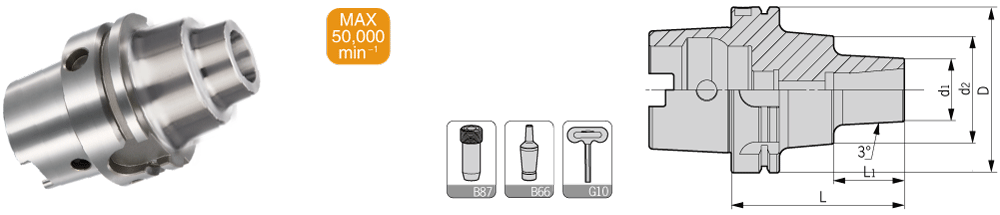

HSK-A-DSF Shrink Fit Holder
型号                                                   拉紧螺钉 止动螺母 T型扳手  重量

 Specifcation

 D d1 d2 L

L1

Tension Screw

Stop  nut

 Wrench

Weight

HSK50A-

HSK63A-



HSK100A-

  DSF12-100 50 38 - 100 74 E100Z300 ZD12-1 T06-L 0.80
 DSF12-100 63 38 - 100 74 E100Z300

ZD12-1

T06-L

 1.00
 DSF12-135 63 38 - 135 109 E100Z300 ZD12-1 T06-L 1.70
 DSF12-105 100 38 65 105 43 E100Z300

ZD12-1

T06-L

 3.40
注：报价时含扳手。
Notice:Wrench is included.



特点/ Feature
■动平衡设定: G2.5; 25,000 rpm。 ■Balanced: G2.5; 25,000 rpm;
■3D处径向跳动≤0.003 mm。 ■Runout (X3D): ≤ 0.003 mm.





Previous Products

 HSK-A-SF Shrink Fit Holder 		Next Products

 HSK-A-DC Precision Slim Collet Chuck
