Back-Boring Tool You Are Here : Back-Boring Tool

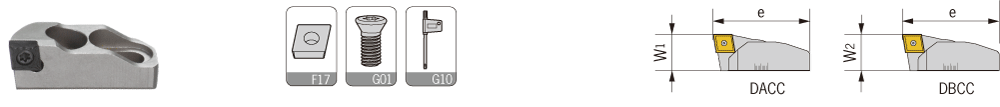

Inserts Holder For DBH Rough Boring Tool
  高刃刀座A

低刃刀座B

                             镗孔范围 刀片  刀片螺钉  旗形扳手 重量


 Cartridge A

Cartridge B

 W1 W2 e Boring range Insert Insert screw Wrench

Weight









DACC

  2026-C DBCC  2026-C 13.2 13.0 17.0 20-26 CCMT0602 M025W060 Q08 0.01
   2533-C    2533-C 13.2 13.0 20.9 25-33 CCMT0602 M025W060 Q08 0.01
   3242-C    3242-C 16.4 16.2 26.4 32-42 CCMT0602 M025W060 Q08 0.02
   4055-C    4055-C 19.6 19.4 33.0 40-55 CCMT09T3 M040S100-1 Q15 0.04
   5270-C    5270-C 22.6 22.4 44.4 52-70 CCMT09T3 M040S100-1 Q15 0.06



  6892-C    6892-C 27.7 27.5 58.4 68-92 CCMT1204 M050Y110-1 Q20 0.09
   90122-C    90122-C 25.7 25.45 72.9 90-122 CCMT1204 M050Y110-1 Q20 0.12



  120164-C    120164-C 29.7 29.4 106.5 120-164 CCMT1204 M050Y110-1 Q20 0.18
   160204-C    160204-C 29.7 29.4 120.5 160-204 CCMT1204 M050Y110-1 Q20 0.23

 DACC

 3242-T

DBCC

 3242-T 16.4 16.2 26.4 32-42 TCMT1102 M025W060 Q08 0.02



  4055-T    4055-T 19.4 19.2 33.0 40-55 TCMT1102 M025W060 Q08 0.04
   5270-T    5270-T 22.6 22.4 44.2 52-70 TCMT16T3 M040S100-1 Q15 0.06
   6892-T    6892-T 27.7 27.5 58.4 68-92 TCMT16T3 M040S100-1 Q15 0.09
   90122-T    90122-T 25.7 25.45 72.9 90-122 TCMT2204 M040S100-1 Q20 0.12
   120164-T    120164-T 29.7 29.4 106.5 120-164 TCMT2204 M050Y110-1 Q20 0.18



  160204-T    160204-T 29.7 29.4 120.5 160-204 TCMT2204 M050Y110-1 Q20 0.23
 适用Suitable:德克、三菱或日立刀片DEREK、MITSUBISHI Or HITACHI Insert
