Back-Boring Tool You Are Here : Back-Boring Tool

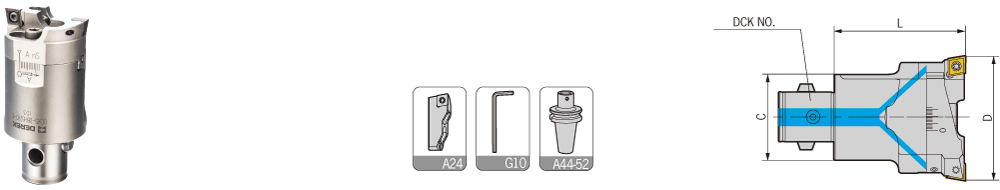

DBH Rough Boring Tool
型号                             镗孔范围D              组合刀柄         刀片座
   重量

 Specifcation

 d L Boring range Adapter size Insert   holder

Weight

  DCK1-DBH20-26-C 19 32.5 20-26 DCK1  DACC026-C    DBCC2026-C 0.06
 DCK2-DBH25-33-C 24 35.5 25-33 DCK2  DACC2533-C    DBCC2533-C 0.12
 DCK3-DBH32-42-T 31 40 32-42 DCK3  DACC3242-T    DBCC3242-T 0.27
 DCK3-DBH32-42-C 31 40 32-42 DCK3  DACC3242-C    DBCC3242-C 0.25
 DCK4-DBH40-55-T 39 47 40-55 DCK4  DACC4055-T    DBCC4055-T 0.49
 DCK4-DBH40-55-C 39 47 40-55 DCK4  DACC4055-C    DBCC4055-C 0.45
 DCK5-DBH52-70-T 50 57 52-70 DCK5  DACC5270-T    DBCC5270-T 0.88
 DCK5-DBH52-70-C 50 57 52-70 DCK5  DACC5270-C    DBCC5270-C 0.88
 DCK6-DBH68-92-T 64 71 68-92 DCK6  DACC6892-T    DBCC6892-T 1.60
 DCK6-DBH68-92-C 64 71 68-92 DCK6  DACC6892-C    DBCC6892-C 1.58
 DCK6-DBH90-122-T 64 71 90-122 DCK6  DACC90122-T    DBCC90122-T 2.43
 DCK6-DBH90-122-C 64 71 90-122 DCK6  DACC90122-C    DBCC90122-C 2.28
 DCK7-DBH120-164-T 90 71 120-164 DCK7  DACC120164-T    DBCC120164-T 4.70
 DCK7-DBH120-164-C 90 71 120-164 DCK7  DACC120164-C    DBCC120164-C 4.70
 DCK7-DBH160-204-T 90 71 160-204 DCK7  DACC160204-T    DBCC160204-T 5.80
 DCK7-DBH160-204-C 90 71 160-204 DCK7  DACC160204-C    DBCC160204-C 5.80

 注：使用错齿式加工详见A77页“加工方法”

 Notice: For stepped cutting, please refer to Page A77。
