Back-Boring Tool You Are Here : Back-Boring Tool

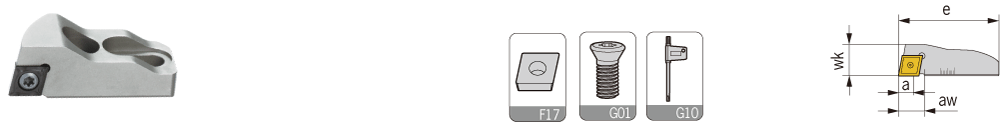

Cartridge for ABH Rough Back-boring Tool
反镗刀座K                             镗孔范围 组合镗头 刀片  刀片螺钉  旗形扳手    重量

 Cartridge K

aw

 wk e a Boring range Boring head Insert Insert screw Wrench

Weight

AKCC  2936

4

11 25 0.5-3 29-36 ABH25 CCMT0602 M025W060 Q08 0.01
   3542

7

11 30 0.5-3 35-42 ABH25 CCMT0602 M025W060 Q08 0.02
   3645

 5

11 32 0.5-3 36-45 ABH32 CCMT0602 M025W060 Q08 0.02
   4453

9

11 38 0.5-3 44-53 ABH32 CCMT0602 M025W060 Q08 0.02
   4556

5

15 40 0.5-4 45-56 ABH40 CCMT09T3 M040S100-1 Q15 0.04
   5566

12

15 46.5 0.5-4 55-66 ABH40 CCMT09T3 M040S100-1 Q15 0.05
   5674

11

17 49 0.5-4 56-74 ABH50 CCMT09T3 M040S110-1 Q15 0.07
   7492

 17

17 62 0.5-4 74-92 ABH50 CCMT09T3 M040S110-1 Q15 0.09
   7090

 12

21 60 0.5-5 70-90 ABH63 CCMT1204 M050Y110-1 Q20 0.13
   90110

 22

21 78 0.5-5 90-110 ABH63 CCMT1204 M050Y110-1 Q20 0.18
   90130

24

21.5 82 0.5-5 90-130 ABH80 CCMT1204 M050Y110-1 Q20 0.18
   130170

 24

21.5 102.5 0.5-5 130-170 ABH80 CCMT1204 M050Y110-1 Q20 0.25
适用Suitable:德克、三菱或日立刀片DEREK、MITSUBISHI Or HITACHI Insert
