Back-Boring Tool You Are Here : Back-Boring Tool

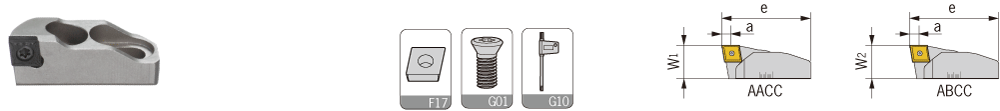

Cartridge for ABH Rough Boring Tool
高刃刀座A

低刃刀座B

                             镗孔量 镗孔范围 组合镗头 刀片  刀片螺钉  旗形扳手    重量

 Cartridge A

Cartridge B

 W1 W2 e a Boring range Boring head Insert Insert screw Wrench

Weight



AOCC 1619

11

13.85

 0.5-2

16-19

 C20-ABH15

 CCGT0401

M020D055

Q06

0.01



AOCC 1821

11

14.85

 0.5-2

18-21

 C20-ABH15

 CCGT0401

M020D055

Q06

0.01

AACC  2026 ABCC  2026 11.95 11.85 17.7 0.5-3 20-26 ABH19 CCMT0602 M025W060 Q08 0.01
   2531    2531 11.95 1185 20.2 0.5-3 25-31 ABH19 CCMT0602 M025W060 Q08 0.01
   2936    2936 11.7 11.5 25 0.5-3 29-36 ABH25 CCMT0602 M025W060 Q08 0.01
   3542    3542 11.7 11.5 30 0.5-3 35-42 ABH25 CCMT0602 M025W060 Q08 0.02
   3645    3645 11.7 11.5 32 0.5-3 36-45 ABH32 CCMT0602 M025W060 Q08 0.02
   4453    4453 11.7 11.5 38 0.5-3 44-53 ABH32 CCMT0602 M025W060 Q08 0.02
   4556    4556 15.6 15.4 40 0.5-4 45-56 ABH40 CCMT09T3 M040S100-1 Q15 0.04
   5566    5566 15.6 15.4 46.5 0.5-4 55-66 ABH40 CCMT09T3 M040S100-1 Q15 0.05
   5674    5674 17.6 17.4 49 0.5-4 56-74 ABH50 CCMT09T3 M040S110-1 Q15 0.06
   7492    7492 17.6 17.4 62 0.5-4 74-92 ABH50 CCMT09T3 M040S110-1 Q15 0.09
   7090    7090 22.6 22.4 60 0.5-5 70-90 ABH63 CCMT1204 M050Y110-1 Q20 0.12
   90110    90110 22.6 22.4 78 0.5-5 90-110 ABH63 CCMT1204 M050Y110-1 Q20 0.18
   90130    90130 22.6 22.4 82 0.5-5 90-130 ABH80 CCMT1204 M050Y110-1 Q20 0.18
   130170    130170 22.6 22.4 99.5 0.5-5 130-170 ABH80 CCMT1204 M050Y110-1 Q20 0.23
适用Suitable:德克、三菱或日立刀片DEREK、MITSUBISHI Or HITACHI Insert
