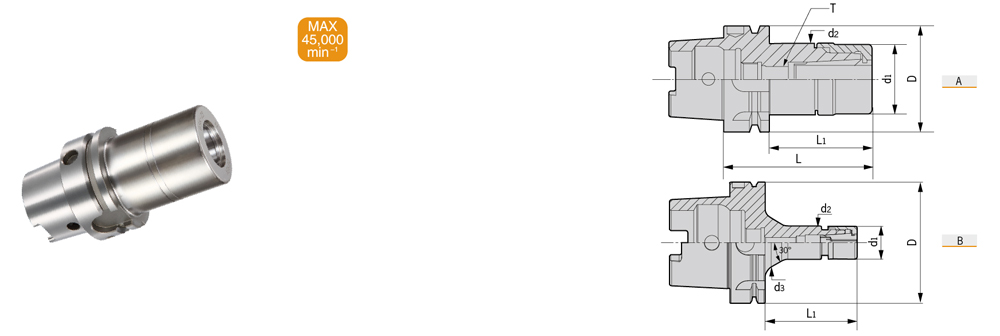

HSK-A-GSK High-speed Collet Chuck
型号 夹持范围
                T适用筒夹 重量

 Specifcation

   Clamping range
D d1 d1

d3

a

L

L1

 T

Suit collet

Weight
HSK40A-





HSK50A-











HSK63A-











































HSK100A-

GSK6-60
2-6 40 19.5 20 - - 60 40 - DSK6 0.47
GSK10-75 2-10 40 27 27.5 - - 75 55 - DSK10 0.50
GSK6-60 2-6 50 19.5 20 - - 60 34 - DSK6 0.60
GSK6-80P 2-6 50 19.5 20   - 80 54 M6x1 DSK6 0.80
GSK10-75 2-10 50 27 27.5 - - 75 49 -   1.00
GSK10-100P 2-10 50 27 27.5 - - 100 74 M10x1.5 DSK10 1.20
GSK16-80 3-16 50 40 40.5 - - 80 54 - DSK16 1.75
GSK16-100P 3-16 50 40 40.5 - - 100 74 M16x2 DSK16 2.00
GSK20-100 3.5-20 50 48 48.5 - - 100 74 - DSK20 2.10
GSK6-80P 2-6 63 19.5 20 - - 80 54 M6x1 DSK6 0.85
GSK6-100P 2-6 63 19.5 20 - - 100 74 M6x1 DSK6 0.95
GSK10-75 2-10 63 27 27.5 - - 75 49 - DSK10 1.00
GSK10-100P
 2-10 63 27 27.5 - - 100 74 M10x1.5 DSK10 1.40
GSK16-80 3-16 63 40 40.5 - - 80 54 - DSK16 2.00
GSK16-100P 3-16 63 40 40.5 - - 100 74 M16x2 DSK16 2.30
GSK16-120P 3-16 63 40 40.5 - - 120 94 M16x2 DSK16 2.50
GSK20-100 3.5-20 63 48 48.5 - - 100 74 - DSK20 2.45
GSK20-120P 3.5-20 63 48 48.5 - - 120 94 M16x2 DSK20 2.65
GSK25-100 16.5-25.4 63 55 55 - - 100 74 - DSK25 2.30
GSK25-120P 16.5-25.4 63 55 55 - - 120 94 M20x2.5 DSK25 2.70
GSK10-105P 2-10 100 27 27.5 40.3 30º 105 76 M10x1.5 DSK10 2.60
GSK10-135P 2-10 100 27 27.5 40.3 30º 135 106 M10x1.5 DSK10 2.80
GSK16-105P 3-16 100 40 40.5 - - 105 76 M16x2 DSK16 2.80
GSK16-135P 3-16 100 40 40.5 - - 135 106 M16x2 DSK16 3.10
GSK20-120P 3.5-20 100 48 48.5 - - 120 91 M16x2 DSK20 3.00
GSK20-150P 3.5-20 100 48 48.5 - - 150 121 M16x2 DSK20 3.30
GSK25-120P 16.5-25.4 100 55 55 - - 120 91 M20x2.5 DSK25 3.20
GSK25-150P 16.5-25.4 100 55 55 - - 150 121 M20x2.5 DSK25 3.50
注：筒夹与扳手需单独另购，可选配中心出水螺帽与端面出水螺帽详见第几页。
Notice: Collets and wrenchs shall be ordered separately.

特点/ Feature
■动平衡设定： G2.5 ； 30,000 rpm。
 ■Balanced: G2.5; 30,000 rpm;
■3D处径向跳动0.003 mm。
 ■Runout (X3D): < 0.003 mm.
