FEATURED HOLDERS You Are Here : FEATURED HOLDERS

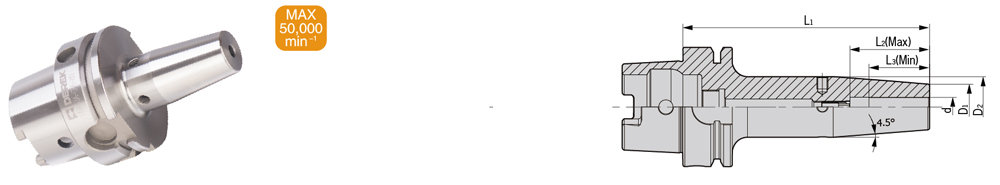

HSK-A-SF Shrink Fit Holder
型号                                                                           重量

 Specifcation

 d D1 D2 L1

L2(Max)

L3(Min)

Weight

HSK63A-

































































































HSK100A-

 SF3-80 3 10 10 80 - 9 0.50
SF4-80 4 10 10 80 - 12 0.60
SF5-80 5 10 10 80 - 15 0.70
SF6-80 6 21 27 80 28 18 0.80
SF6-130 6 21 27 130 28 18 1.00
SF6-160 6 21 27 160 28 18 1.20
SF8-80 8 21 27 80 34 24 0.80
SF8-130 8 21 27 130 34 24 1.02
SF8-160 8 21 27 160 34 24 1.25
SF10-85 10 24 32 85 40 30 0.90
SF10-130 10 24 32 130 40 30 1.17
SF10-160 10 24 32 160 40 30 1.45
SF12-90 12 24 32 90 40 30 0.92
SF12-130 12 24 32 130 40 30 1.15
SF12-160 12 24 32 160 40 30 1.55
SF14-90 14 27 34 90 42 32 0.95
SF14-130 14 27 34 130 42 32 1.18
SF14-160 14 27 34 160 42 32 1.60
SF16-95 16 27 34 95 42 32 1.00
SF16-130 16 27 34 130 42 32 1.21
SF16-160 16 27 34 160 42 32 1.65
SF18-95 18 33 42 95 50 40 1.05
SF18-130 18 33 42 130 50 40 1.25
SF18-160 18 33 42 160 50 40 1.70
SF20-100 20 33 42 100 50 40 1.20
SF20-130 20 33 42 130 50 40 1.49
SF20-160 20 33 42 160 50 40 1.80
SF25-115 25 44 53  115 55 45 1.98
SF25-160 25 44 53 160 55 45 2.10
SF32-120 32 44 53 120 60 50 2.10
SF32-160 32 44 53 160 60 50 2.60
SF6-85 6 21 27 85 28 18 2.00
SF6-130 6 21 27 130 28 18 2.30
SF6-160 6 21 27 160 28 18 2.62
SF8-85 8 21 27 5 34 24 2.00
SF8-130 8 21 27 130 34 24 2.30
SF8-160 8 21 27 160 34 24 2.65
SF10-90 10 24 32 90 40 30 2.20
SF10-130 10 24 32 130 40 30 2.40
SF10-160 10 24 32 160 40 30 2.70
SF12-95 12 24 32 95 40 30 2.30
SF12-130 12 24 32 130 40 30 2.50
SF12-160 12 24 32 160 40 30 2.75
SF14-95 14 27 34 95 42 32 2.35
SF14-130 14 27 34 130 42 32 2.60
SF14-160 14 27 34 160 42 32 2.85
SF16-100 16 27 34 100 42 32 2.50
SF16-130 16 27 34 130 42  32 2.80
SF16-160 16 27 34 160 42 32 3.13
SF18-100 18 33 42 100 50 40 2.55
SF18-130 18 33 42 130 50 40 2.85
SF18-160 18 33 42 160 50 40 3.21
SF20-105 20 33 42 105 50 40 2.60
SF20-130 20 33 42 130 50 40 2.90
SF20-160 20 33 42 160 50 40 3.25
SF25-115 25 44 53 115 55 45 2.80
SF25-160 25 44 53 160 55 45 3.40
SF32-120 32 44 53 120 60 50 3.20
SF32-160 32 44  53 160 60 50 3.60

特点/ Feature
■动平衡设定：  G2.5 ； 25,000 rpm。
 ■Balanced: G2.5; 25,000 rpm;
■3D处径向跳动0.003 mm。
 ■Runout (X3D): < 0.003 mm.
